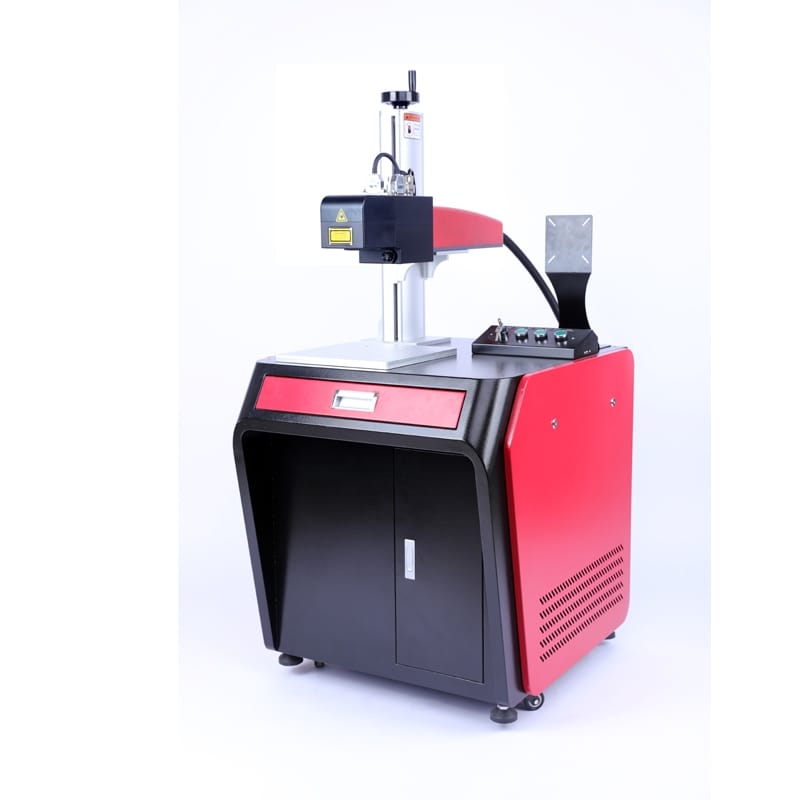

| Model | UV Laser Marking Machine |
| Laser Source | 3W / 5W JPT |
| Wavelength | 355 nm |
| Working Area | 110 × 110 mm |
| Engraving Range | 100 × 100 mm – 175 × 175 mm |
| Laser Repetition Frequency | 200 KHz |
| Precision Accuracy | ±0.05 mm |
| Repeat Positioning Accuracy | 0.002 mm |
| Beam Quality | M² ≤ 1.1 |
| Engraving Line Speed | ≤ 700 mm/s |
| Positioning Method | Red Light Positioning |
| Cooling Method | Water Cooling |
| Power Supply | AC 220V, 50Hz, 5A |
| Total Power Consumption | 500W |
| Environmental Requirements | Temperature: 10–30°C, Humidity: 30–80% |
| System Compatibility | Windows XP / 7 / 8 / 10 |
| Data Transfer Interface | USB 2.0 |
| Control System | EZCAD Offline Controller |
| Supported Image Formats | AI, PLT, DXF, BMP, JPG, PNG, TIFF, etc. |
| Package Weight | 110 KG |
