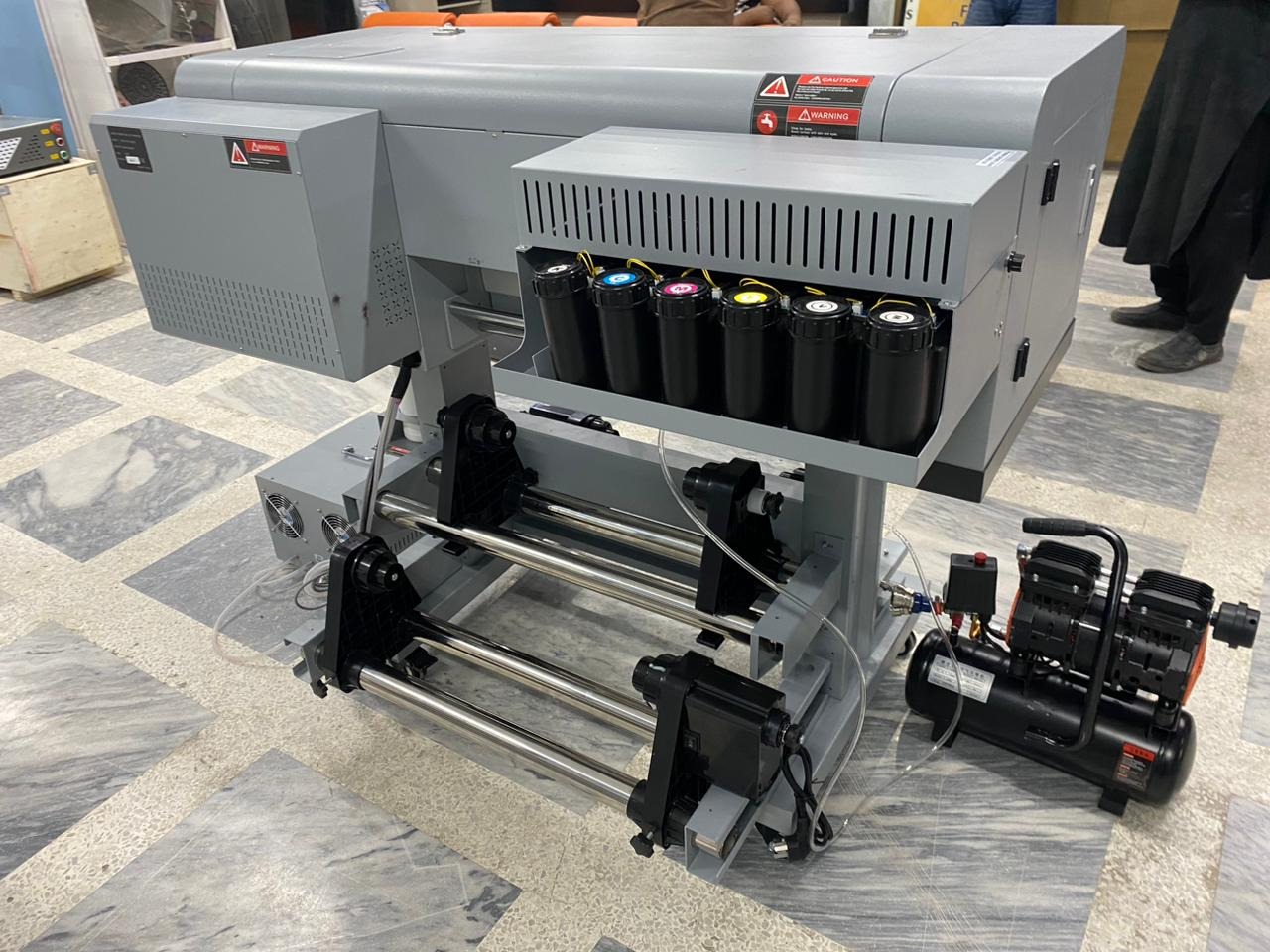

UV DTF Printer prints the ink on the film with glue. The UV DTF sticker will be made after baking with a UV-led lamp and then through the lamination process. Finished products are waterproof.
UV DTF printers are generally suitable for a variety of materials, including but not limited to leather, wood, metal, glass, ceramics, etc.
| Specification | Details |
|---|---|
| Model | UV DTF (Available in 30cm / 60cm widths) |
| Print Head | Epson i3200 - U1 HD |
| Color | CMYK + White + Varnish |
| Printing Width | 30cm |
| Capping System | Automatic Up & Down Capping System |
| Printing Speed (Soft Ink) | 6 Pass: 2.5 m²/h 8 Pass: 1.5 m²/h |
| Printing Speed (Hard Ink) | 6 Pass: 5 m²/h 8 Pass: 3 m²/h |
| RIP Software | Photoprint |
| Ink Bucket Capacity | 500ML |
| Curing Method | UV-LED Curing Lamp (Air Cooled) |
| Working Environment | Temperature: 20-28°C Humidity: 45-65% |
| Alarm System | Ink Shortage Alarm, Travel Protection |
| Total Machine Power | Printer: 1.2KW Laminating Heating: 0.5KW |
| Size / Weight | 880 × 1330 × 672 mm / 127 Kg |
| Power Supply | AC 220V ±5%, 50-60Hz |
