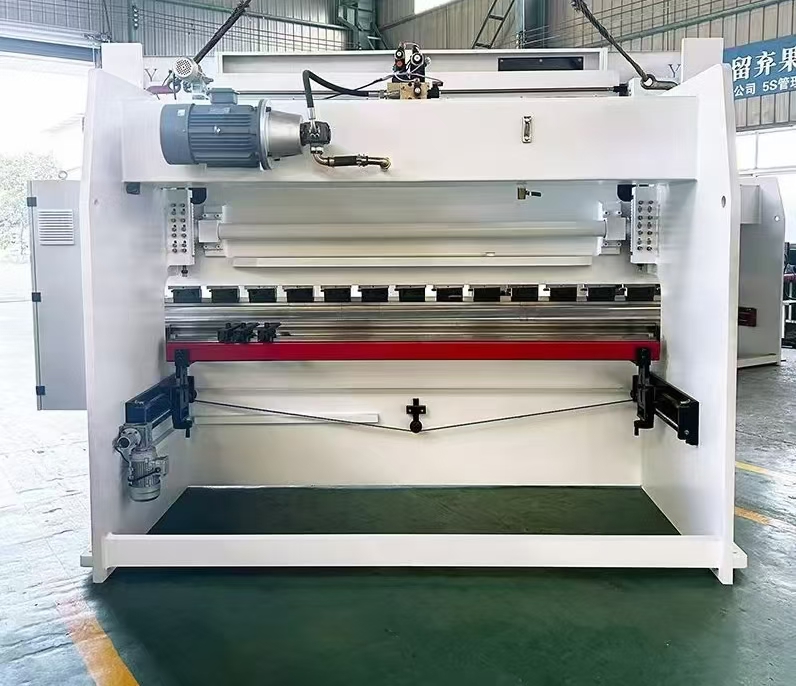

Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufacturing, electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers' different needs.
| Model | Unit | 40T x 2500 |
| NC Control Axis | Y -X axis | |
| Bending Force | Ton | 40 |
| Bending Length | mm | 2500 |
| Poles Distance | mm | 2500 |
| Throat Depth | mm | 250 |
| Beam Stroke | mm | 100 |
| Max Open | mm | 320 |
| Capacity | ||
| Motor Power | Kw | 5.5 |
| Overall Dimensions | mm | 2850 x 1800 x 2200 |
| Machine Weight | Kg | 2500 |
| Configuration | |

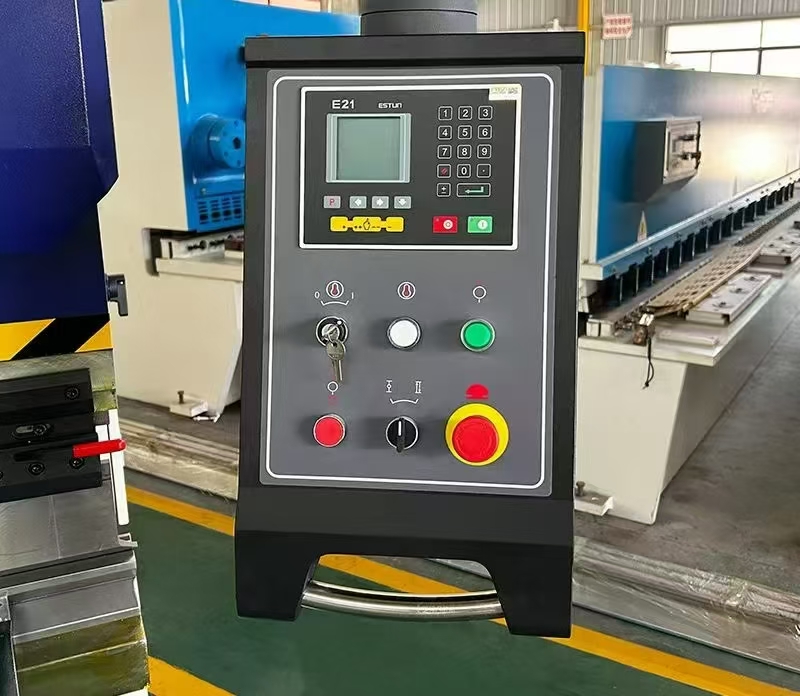

| ESTUN NC System | ESTUN E21 NC Control System from China |
| Hydraulic System | Bosch-Rexroth Hydraulic System from Germany |

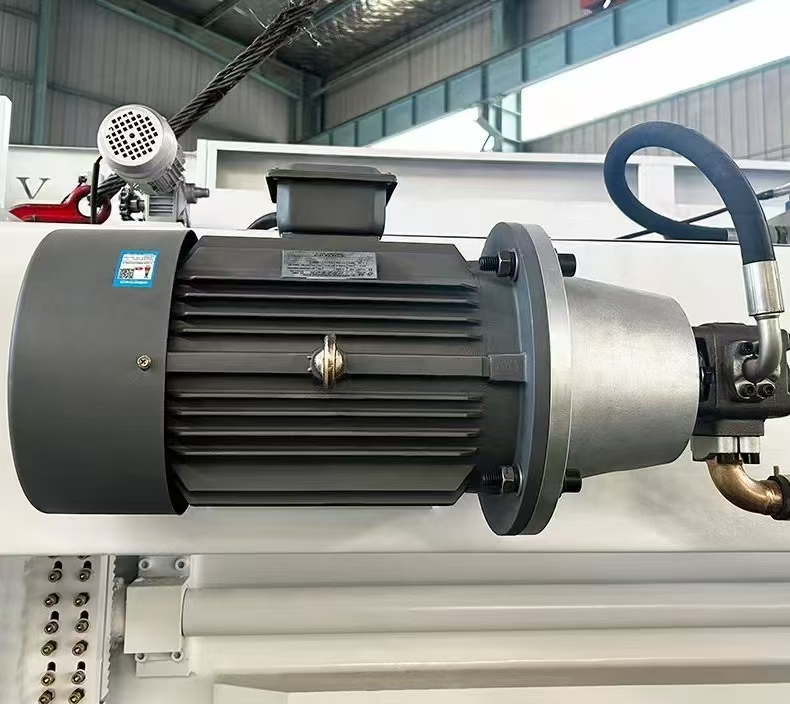

| Main Motor | Siemens Brand from China |
| Sealing Element | NOK oil seal from Japan Brand |
| Hydraulic Pump | Elpeom from Italy Brand |
| Tubing Connector | EMB Brand from Germany |
| Travel Switch | Independent Brand |

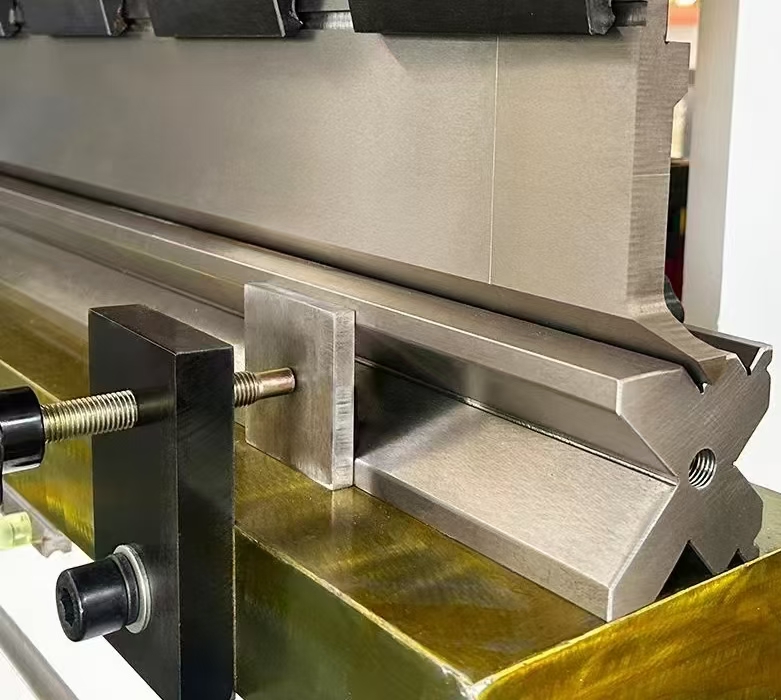

| Upper Punch & Lower Die | Heat Treatment Mold 42CrMo |
| Mold Clamping | European Standard Fast Clamping |

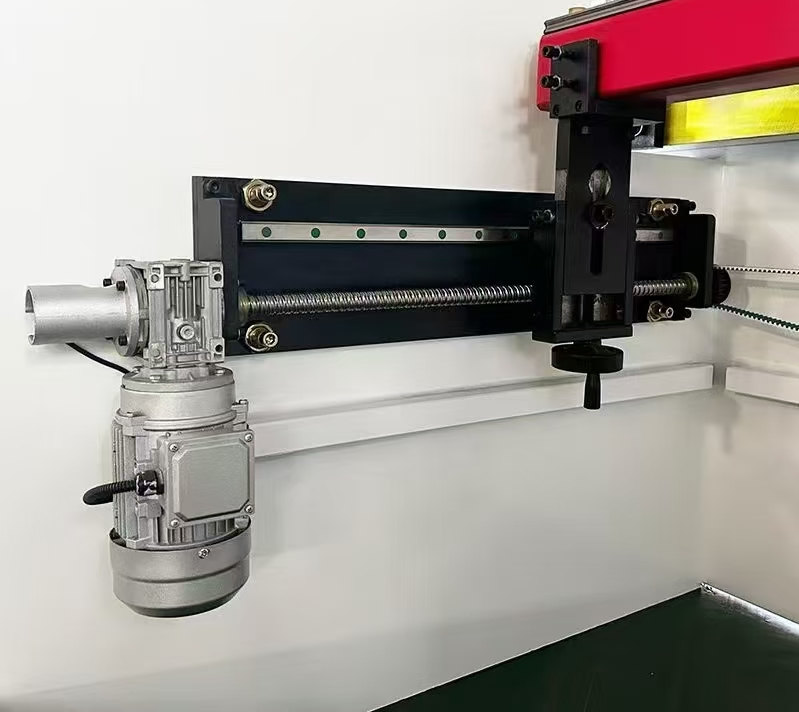

| Backauge Motor | S&L Brand from China |
| Backguage & Liner Guide | Hiwin Brand from China |

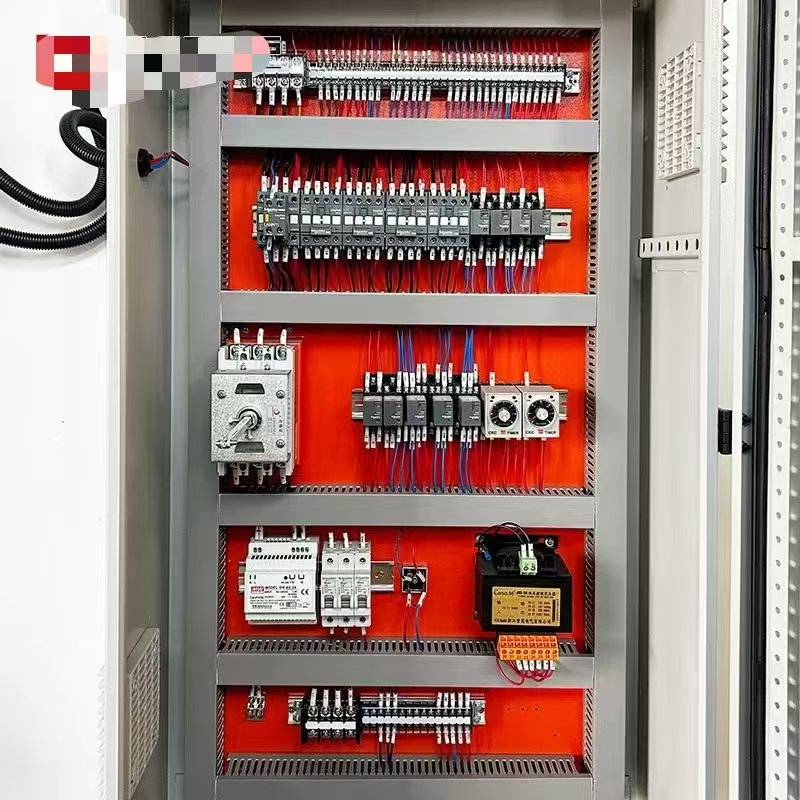

| Electrical Components | Schneider Brand from France |
