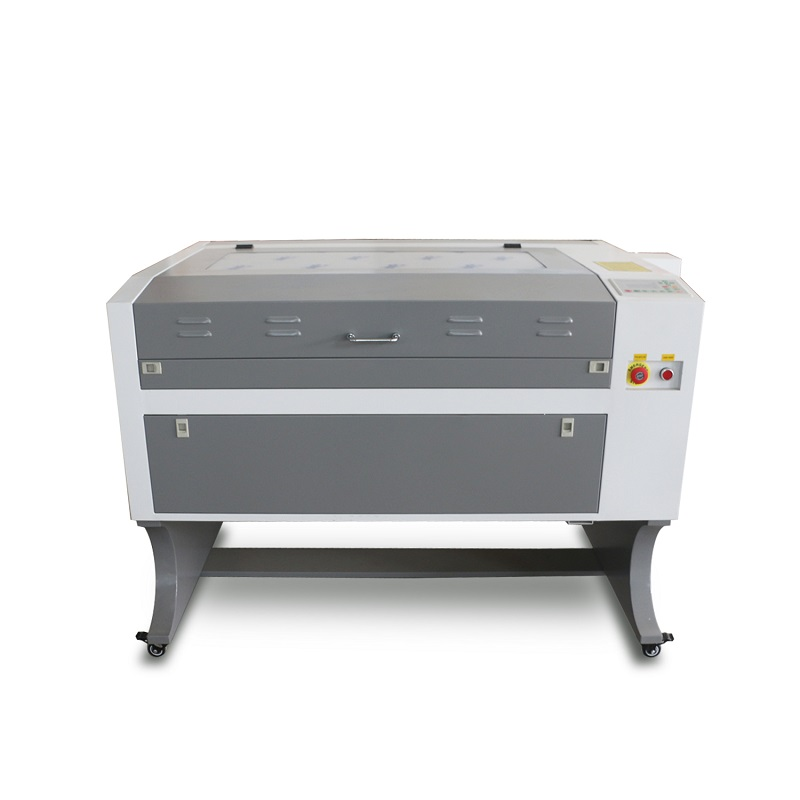

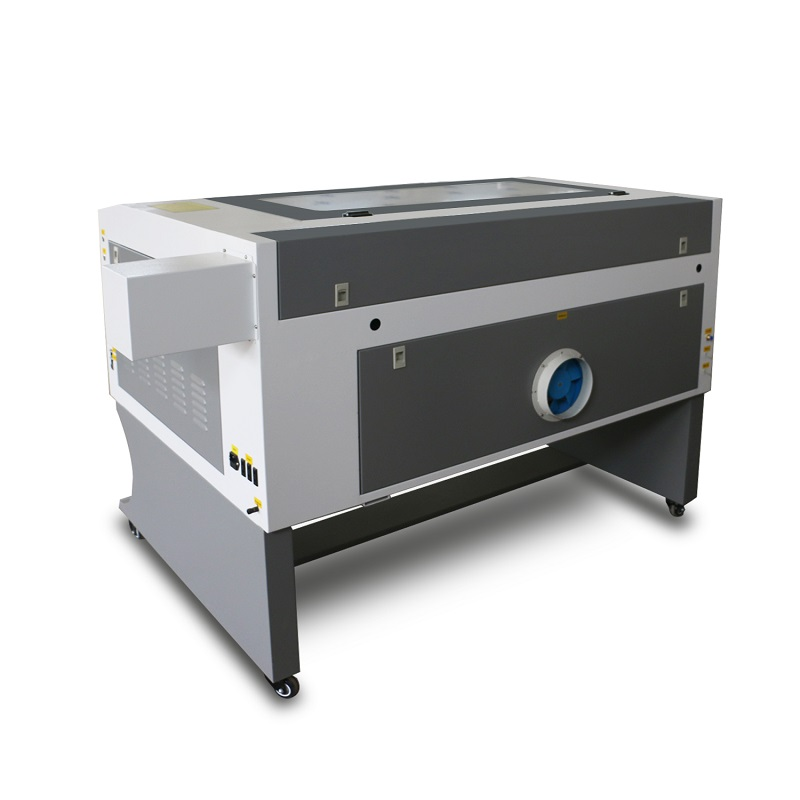

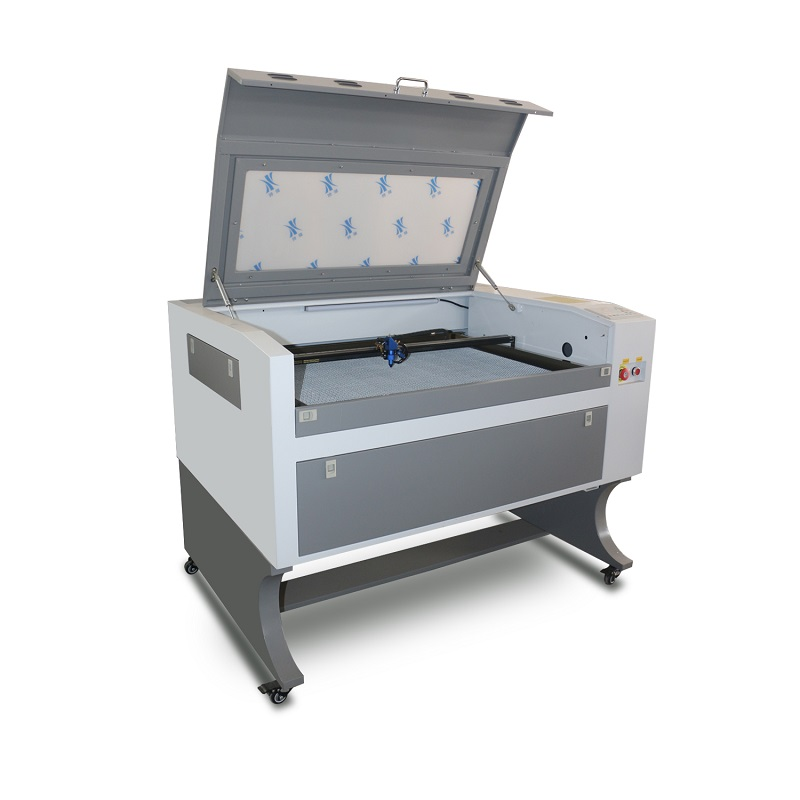

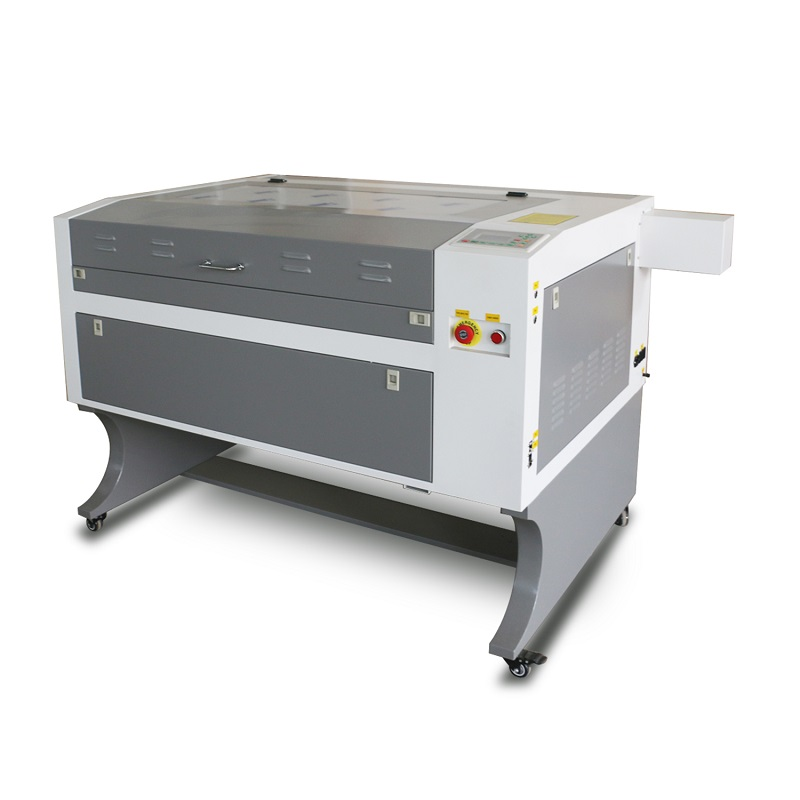

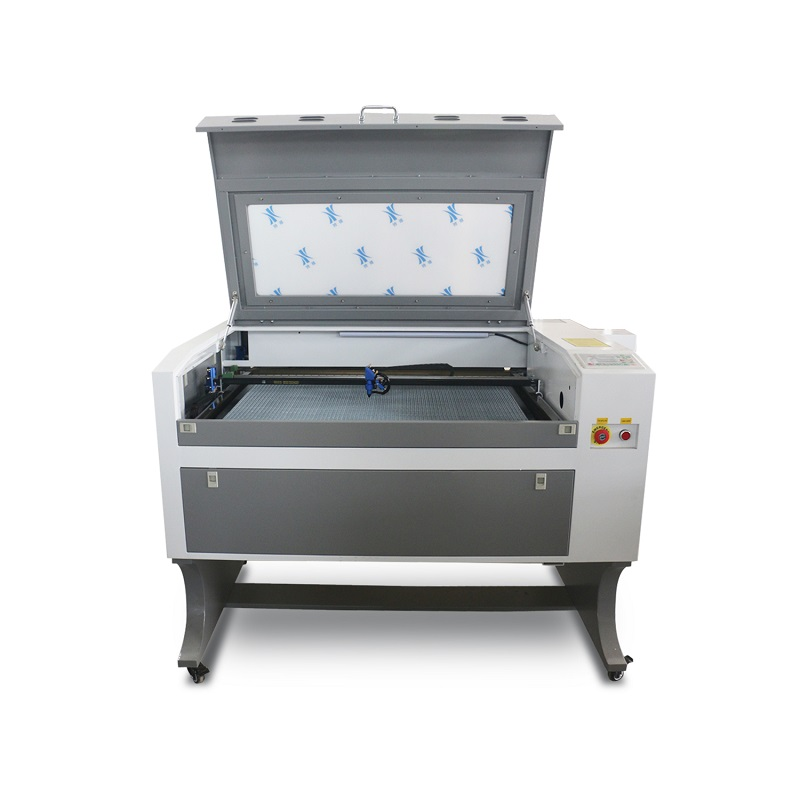

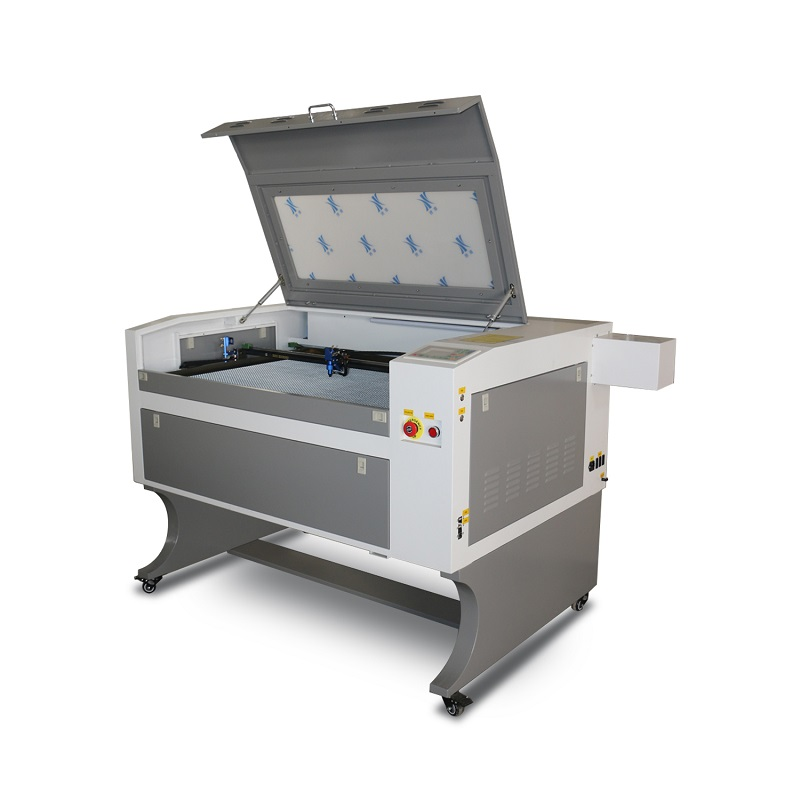

Plywood wood leather acrylic paper glass Co2 laser cutting engraving machine is suitable to seal cutting, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoe making, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.
| Specification | Details |
|---|---|
| Model | 9060 (AWM-2335) |
| Laser Power | 100W |
| Machine Size | 1400 × 980 × 980 mm |
| Package Size | 1570 × 1060 × 800 mm |
| Working Area | 600 × 900 mm |
| Engraving Thickness | 0 – 2 mm (depends on material) |
| Cutting Thickness | 0 – 20 mm (depends on material) |
| Engraving Speed | 1 – 600 mm/s |
| Cutting Speed | 1 – 50 mm/s |
| Laser Type | Sealed CO₂ Laser Tube |
| Cooling Mode | Water Cooling Protection System |
| Water Protection | Yes |
| Positioning Method | Red Light Positioning |
| Locating Precision | ≤ 0.01 mm |
| Power Supply | AC 220V, 50Hz |
| Packaging | Plywood Box |
| System Environment | Windows XP / 7 / 8 / 10 |
| Compatible Software | CorelLaser, LightBurn |
| Special Features | - Lift platform - High speed & accuracy - Easy to operate - Reliable after-sales service |
| Material | Engraving | Cutting |
|---|---|---|
| Acrylic | ✔ | ✔ |
| Wood | ✔ | ✔ |
| Bamboo | ✔ | ✔ |
| Glass | ✔ | ✘ |
| Leather | ✔ | ✔ |
| Paper | ✔ | ✔ |
| Rubber | ✔ | ✔ |
| Textile | ✔ | ✔ |
| Plastic | ✔ | ✔ |
| Metal | ✘ | ✘ |
| Stone | ✔ | ✘ |
| Ceramic | ✔ | ✘ |
