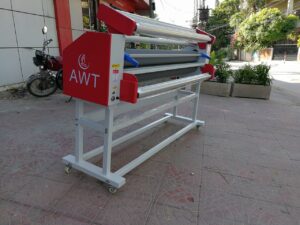

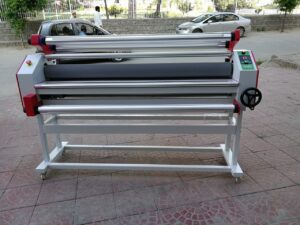

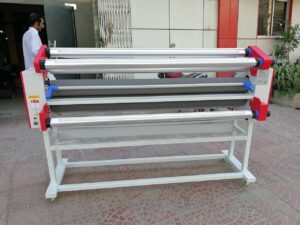

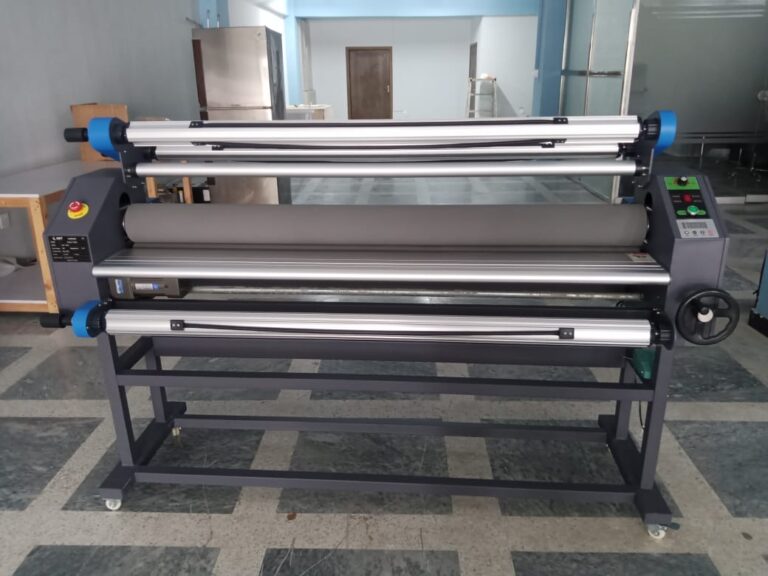

1.6m Wide Format Cold Lamination Machine
✅ High Lamination Yield: Maintains accurate film position even for 50m film rolls
✅ Auto Backing Paper Removal: Improves workflow and efficiency
✅ Anti-Wrinkle Control System: Reduces film tension, preventing wrinkles
✅ Passive Pressure System: Adjusts pressure for thin adhesive films, ensuring smooth lamination
✅ Unilateral Linkage System: Smooth fluctuation, even film tension
✅ Premium Rubber Roller: Imported, heat-resistant, long-lasting elasticity
| Parameter | Value |
|---|---|
| Model | AWT-1600 |
| Rated Voltage | 220V |
| Frequency | 50Hz – 60Hz |
| Power | 60W |
| Laminating Width | ≤1580mm |
| Laminating Speed | 0.4 – 10m/min (Stepless control) |
| Laminating Thickness | Up to 50mm |
| Roller Diameter | 130mm |
| Rubber Roll Length | 1600mm |
| Roll Film OD | Max. 200mm |
| Film Core Compatibility | 2.25″ & 3″ |
| Film Thickness Range | 10 – 250 micron |
| Pressure Adjustment | Manual |
| Foot Switch | Available |
| Auto Film & Liner Handling | Motorized |
| Raise Height of Roller | 50mm |
| Dimensions (L×W×H) | 1880×480×1200mm |
| Packing Size | 1860×470×475mm |
| Gross Weight | 150kg |
Perfect for:
Panaflex banners
Self-adhesive vinyl
Cold lamination of signs, prints, and display materials
