Technical Parameters

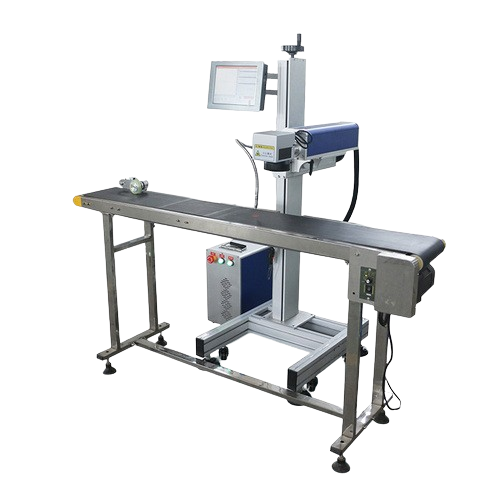

| MODEL | Flying UV Laser Marking Machine | |||
| Laser Source | 5W JPT | |||
| Wavelength | 355nm | |||
| Working Area | 110x110mm | |||
| Laser Repitition Frequency | 200KHz | |||
| Precision Accuracy | +-0.05mm | |||
| Engraving Line Speed | <=700mm/s | |||
| Power Supply | AC220V 50Hz 5A | |||
| Enviromental Requirements | Temperature 10-30C, Humidity 30-80% | |||
| Supported Images Formats | AI, PLT, DXF, BMP, JPG, PNG, TIFF etc. | |||
| Beam Quality | m2<=1.1 | |||
| Enngraving Range | 100x100mm – 175x175mm | |||
| Repeat Positioning Accuracy | 0.002mm | |||
| Positioning Method | Red Light Positioning | |||
| Cooling Method | Water Cooling | |||
| System Compitable Format | Windows XP, 7, 8, 10 | |||
| Data Transfer | USB 2.0 Transmission | |||
| Controll System | EZCAD Offline Controller | |||
| Total Power | 500W | |||
| Package Weight | 110KG | |||
