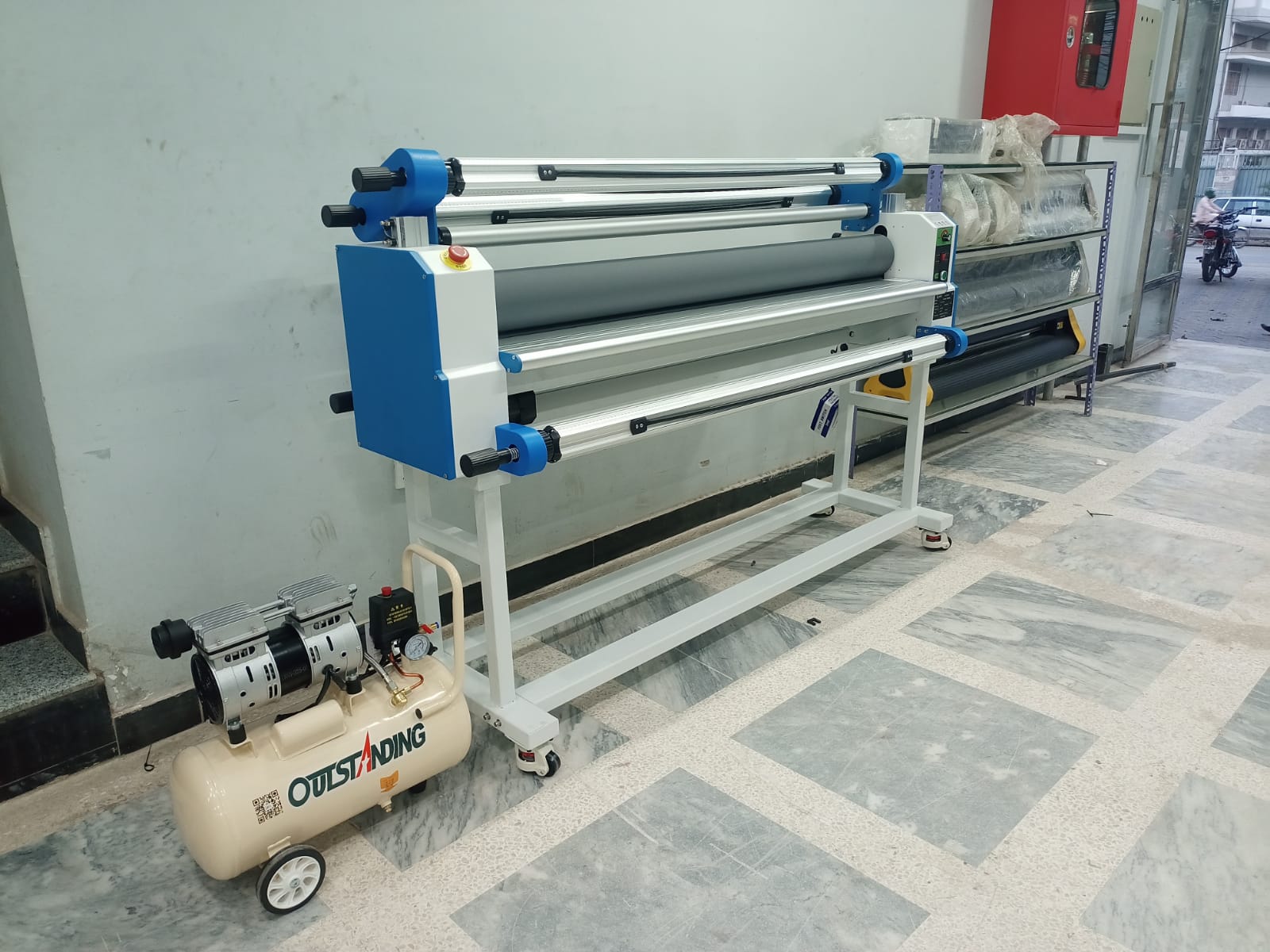

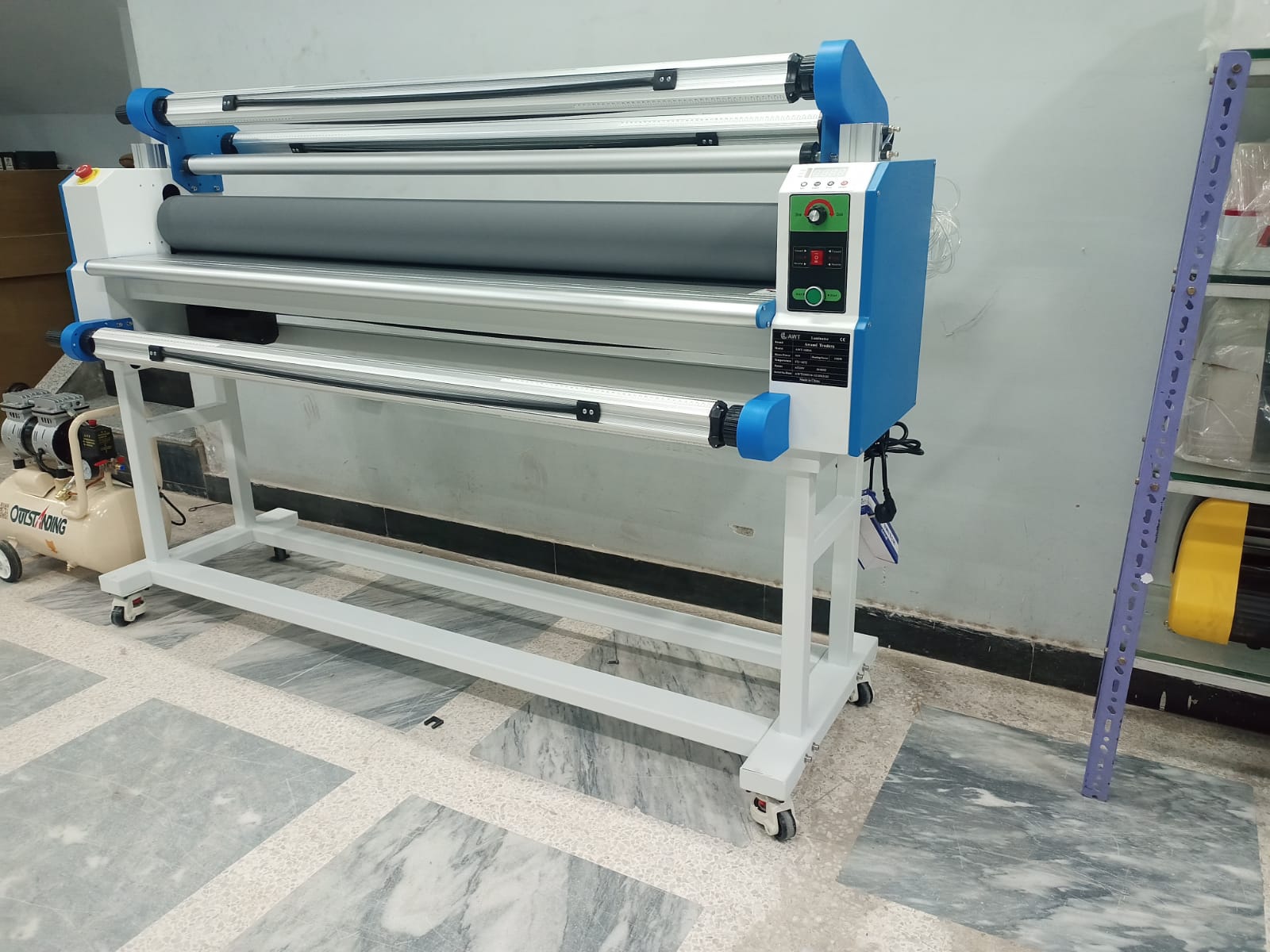

The DMS-1680A Pneumatic Laminating Machine is a high-performance industrial laminator designed for film thicknesses between 10–25µm. It supports a laminating width of up to 1520mm and a maximum thickness of 28mm. Equipped with variable speed control, pneumatic pressure adjustment, and a fast warm-up time (0–10 minutes), this machine ensures smooth and efficient operation. Featuring 130mm rollers and a motorized film handling system, it's ideal for commercial and professional use. With dual voltage support (110V/220V) and a foot switch for hands-free operation, the DMS-1680A delivers reliable and consistent laminating performance.
| Model Number | DMS-1680A | Speed Gear Controlling | Variable |
| Nominal Voltage | 110V / 220V | Maximium Roll film OD | 200mm |
| Power | 60W | The diameter specification of Roll film | 3 inches |
| Heating Power | 1500W | The raise height of roller | 30mm |
| Frequency Responses | 50Hz- 60Hz | Method of pressure adjustment | Pneumatic |
| Operating Temperature | 0°C-60°C | Automatically uncovering film androlling body paper equipment | Motor |
| Scope of Suitable Film Thickness | 10-25µm | Foot-propelled switch | Yes |
| Warm-up Time | 0-10 min | Diameter of roller | 130mm |
| Laminating Width | ≤1520mm | Weight | 210Kg |
| Laminating Speed | 0-10m/min | Product | 1980*570*1240(mm) |
| Laminating Thickness | 28mm | Packing Size | 2070*610*680(mm) |
