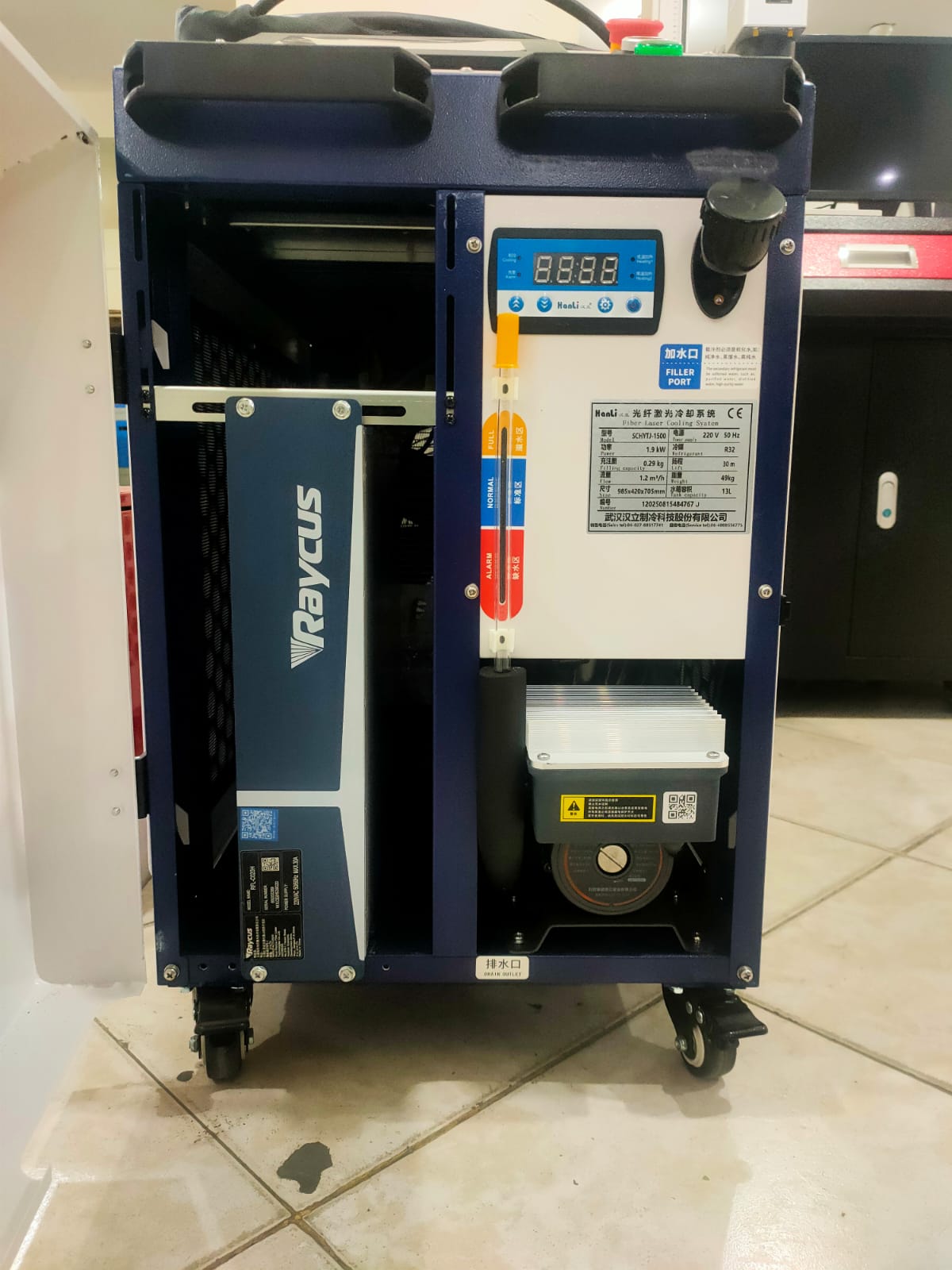

Laser Source

 1500W, 2000W,  3000W  Raycus fiber laser

Laser head

Raytool Brand or Chaoqiang Brand

Function

3 in 1 function.

Laser welding(main function ), laser cleaning (only Max 80mm width), laser cutting

Mainboard

Raytool , Chaoqiang,

Screen

Support Chinese and English, Russian, German  language

Water Chiller

S&A Water Chiller. Tank capacity 16L . Rated flow is 17.5L/min. temeprature Precision is ±1℃

Weld depth

1000W  0.5 to 3mm/  1500W 0.5 to 5mm/ 2000W,  0.5 to 8mm/ 3000W, 0.5mm to 12mm

Repetition rate

50 Hz – 5kHz

Maximum seam clearance

0.7 mm

Maximum pulse power

100 J

Output power stability

 ≤3%

Power consumption

7 KW/ 7.6 KW / 9KW

Cooling method

Water cooling

Voltage

 220V/50 HZ

 Weight

Machine weight  160 KG ,total package weight 190KG
