DTF stands for Direct To Film. This technique involves printing your design directly onto a film and then transferring it to a T-shirt made of cotton, polyester, or their blends, regardless of their colour, as it can work with white ink.
| SPECIFICATIONS | |
| Model | 60cm DTF Printer (High-End Model) |
| Device Type | 2-Head Printer |
| Print Head | Epson i1600 A1*2 / Epson i3200 A1*2 |
| Print Width | 60cm |
| Working Environment | Temperature: 23°C - 28°C Humanidity: 65 - 75% |
| Print Accuracy |
720dpi*1200dpi 4Pass 720dpi*1800dpi 6Pass 720dpi*2400dpi 8Pass |
| Working Power Supply | AC 220V 50 50-60 Hz 4.5A |
| Control Board | Hoson |
| Outside Dimensions | 2000*750*1550mm |
| Packing Size | 2120*920*870mm |
| RIP Software | Photoprint |
| Consumption of Consumables |
Printing Film: 60m²/Roll White Inkling: 25ml/m² Color Ink: 12ml/m² Hotmelt Powder: 30g/m² |
| Spinkler Maintenance | Automatic Cleaning, Automatic Moisturizing |
| Weight | 180Kg |
| Print Speed |
4Pass: 12 - 22m²/h 6Pass: 11 - 18m²/h 8Pass: 8 - 14m²/h |
| Power | 850W |
| Ink Type | Pigment Link (C M Y K W) |
| Device Features | Two White and Two Color Configuration, Fast Speed, High Precision, White Ink Whiter, Nazzle Anti Collision Device, Fluorine Rubber Press Paper Wheel Antic Slip and Antic-static, Suitable For all Kind of Printing Film |

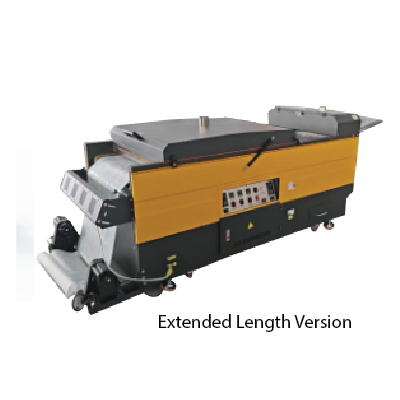

| Device Type | High-End Duster (Extended Version) |
| No of Lamps | 09 |
| Working Power Supply | AC 220V 50Hz 33A |
| Power | 7000W |
| packing Size | 2290*1250*1240mm |
| Outside Dimensions | 2950*1200*1100mm |
| Weight | Net Weight: 310Kg, Package Weight: 380Kg |
| Device Features | Front Guide, Plate Upper and Lower Drying +After Oven Area Lengthened, More Uniform Powder Melting |
