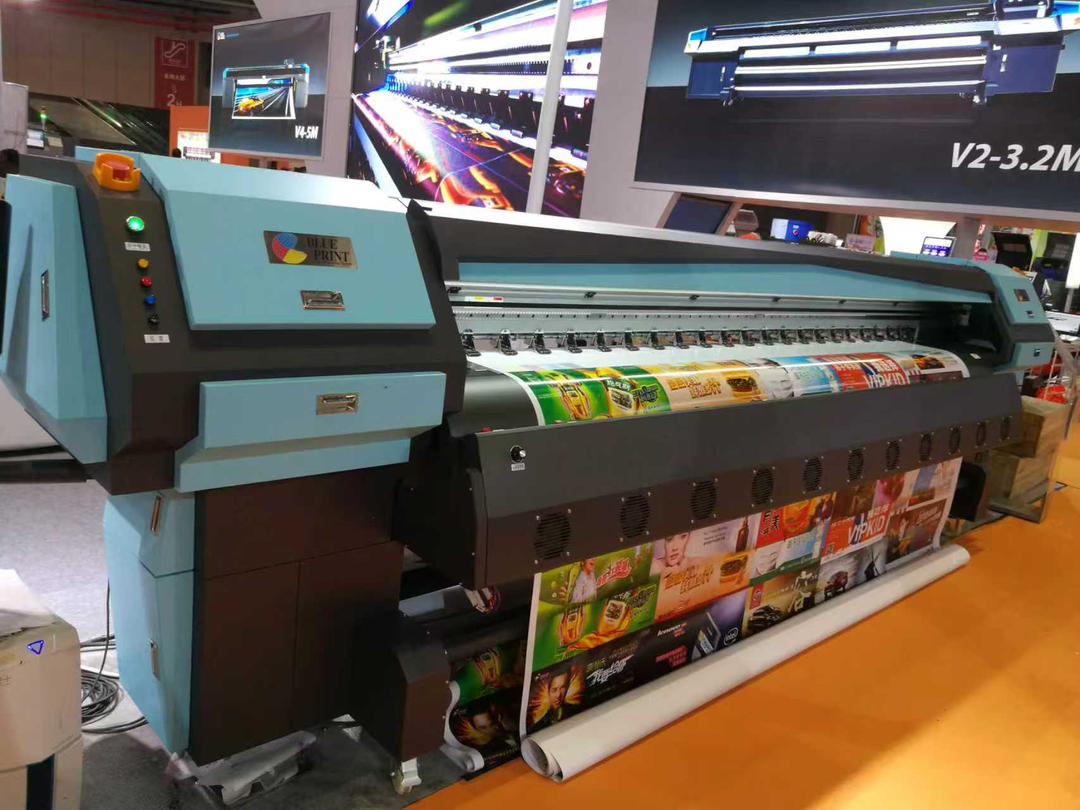

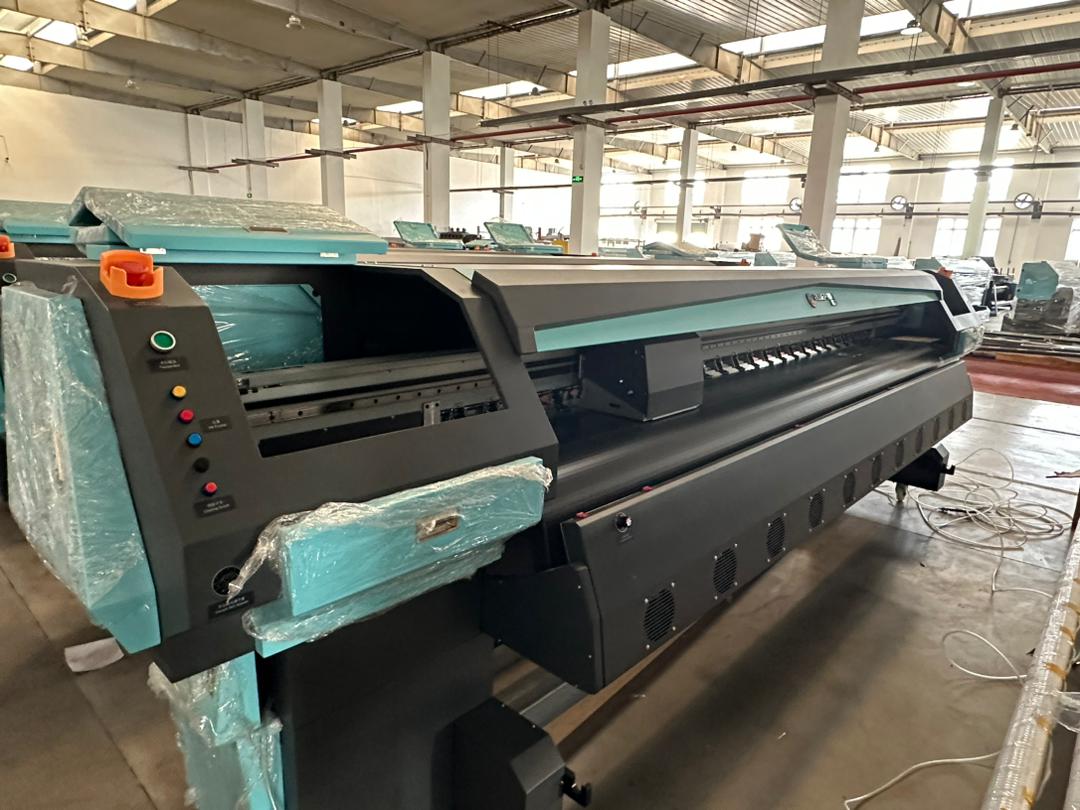

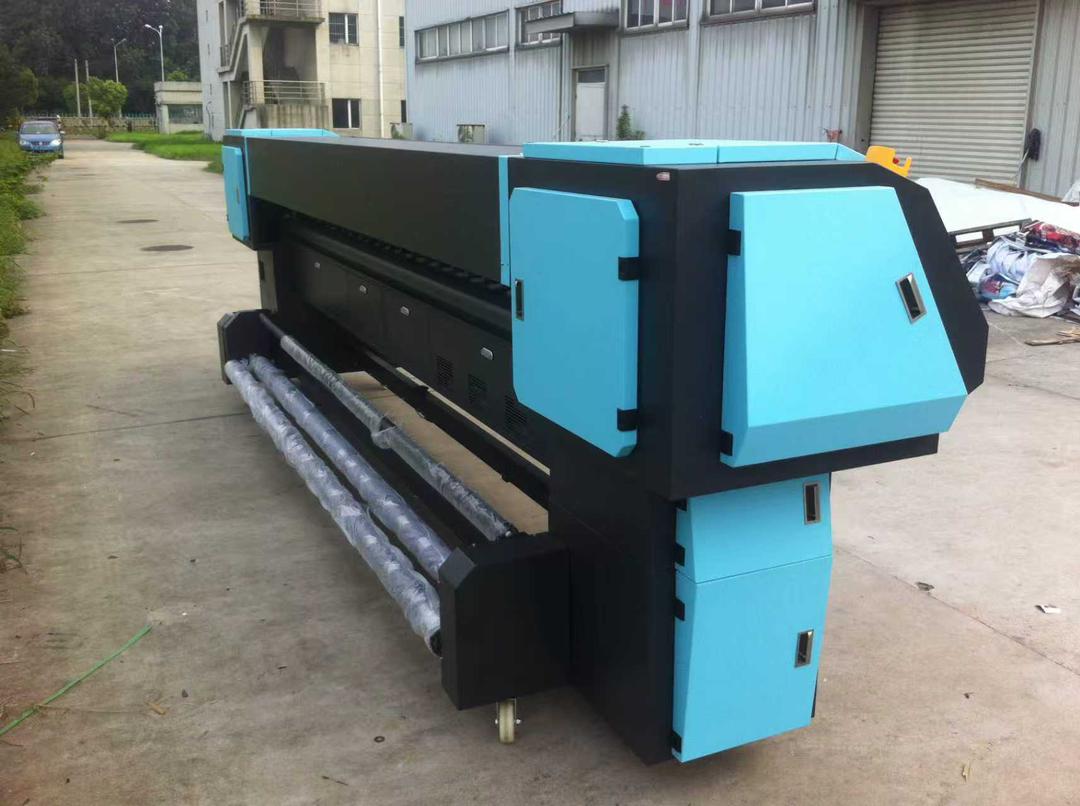

KONICA 512-i SERIES INKJET PRINTER
KM512-i Ultra-high-speed inkjet printer, with a stable frame,was born for production capacity and batch production.240m²/h
Refresh the speed of mass-produced inkjet printer again,super high 240m²/h UMC accessories imported original accessories.
TECHNICAL PARAMETER
| Printhead Configuration | KONICA 512i |
| Printing Resolution | 480 DPI / 540 DPI / 720 DPI |
| Color Mode | Four Colors |
| Material Thickness | 2 MM |
| Curing System | Infrared Heating + Fans |
| Suction Platform | Partition suction adapts to various materials |
| Print Size | Maximum Width 3200 MM |
| Ink | Solvent Ink |
| Ink Tank Capacity | 5000 ML Volume Ink, Automatic Ink Shortage Alarm and Ink Supply System |
| Print Material | Light Box Cloth / Body Stickers / Canvas / Mesh, etc. |
| Operating System | Win11 / Win10 / Win7 64Bit, RAM ≥ 8G |
| RIP Software | Photoprint / MainTop / UltraPrint |
| Working Temperature | 15°C ~ 30°C |
| Working Humidity | 40% ~ 80% |
| Power Supply | Maximum Power: 3.2KW, AC220V (+10%), >15A, 50~60Hz |
| File Format | TIFF, JPEG, EPS, PDF, PSD |
| Dimensions | 4970 × 1080 × 1440 mm |
| Total Weight | 900 KG |
Printing Speed (per configuration)
| Model | Draft Mode | Production Mode | High Precision Mode |
| KONICA 512i – 4 Head | 130 m²/h | 95 m²/h | 80 m²/h |
| KONICA 512i – 8 Head | 240 m²/h | 180 m²/h | 120 m²/h |
