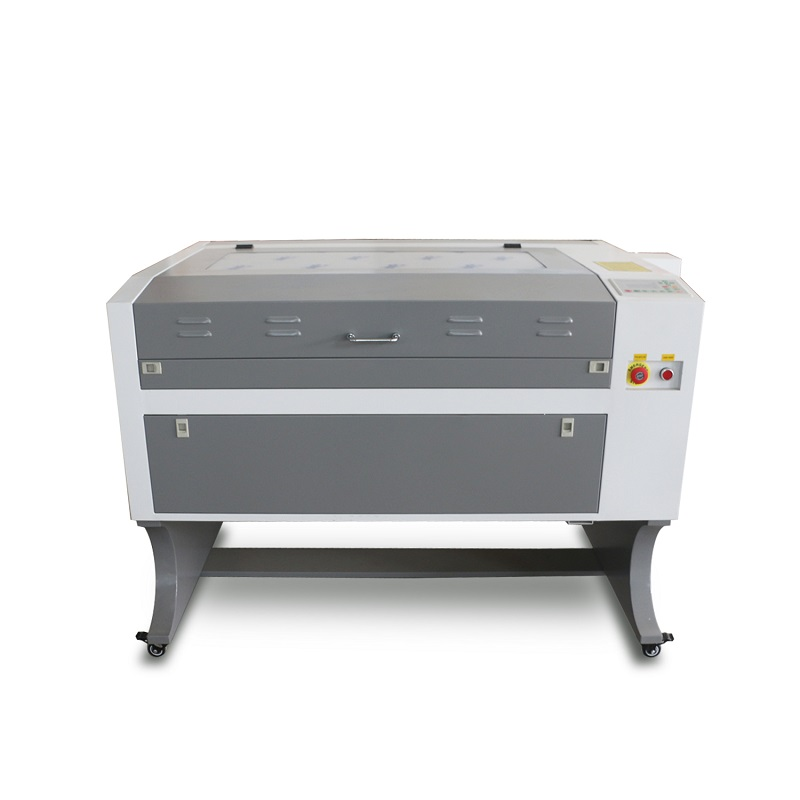

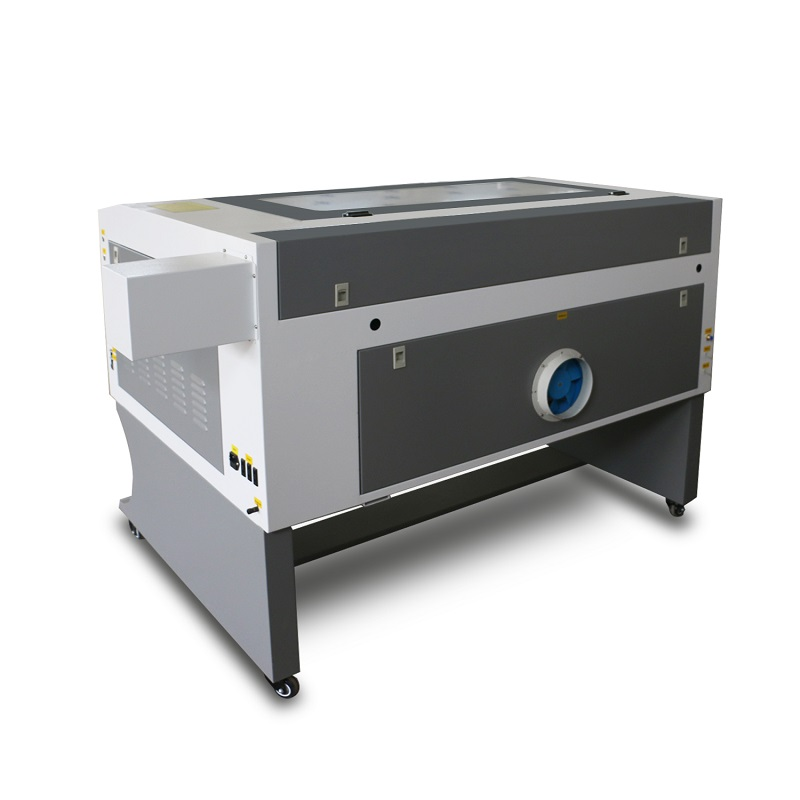

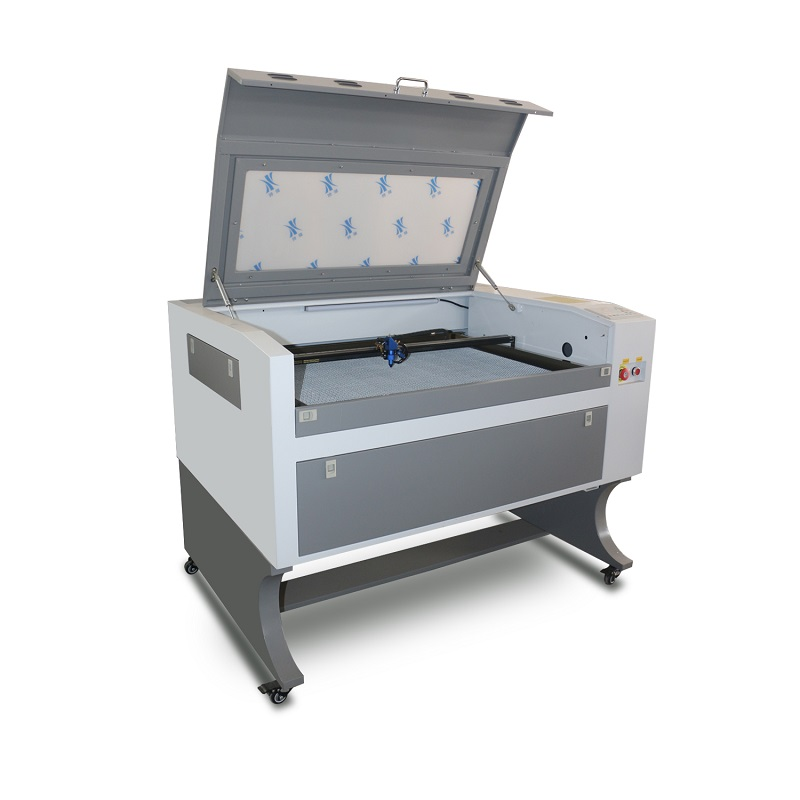

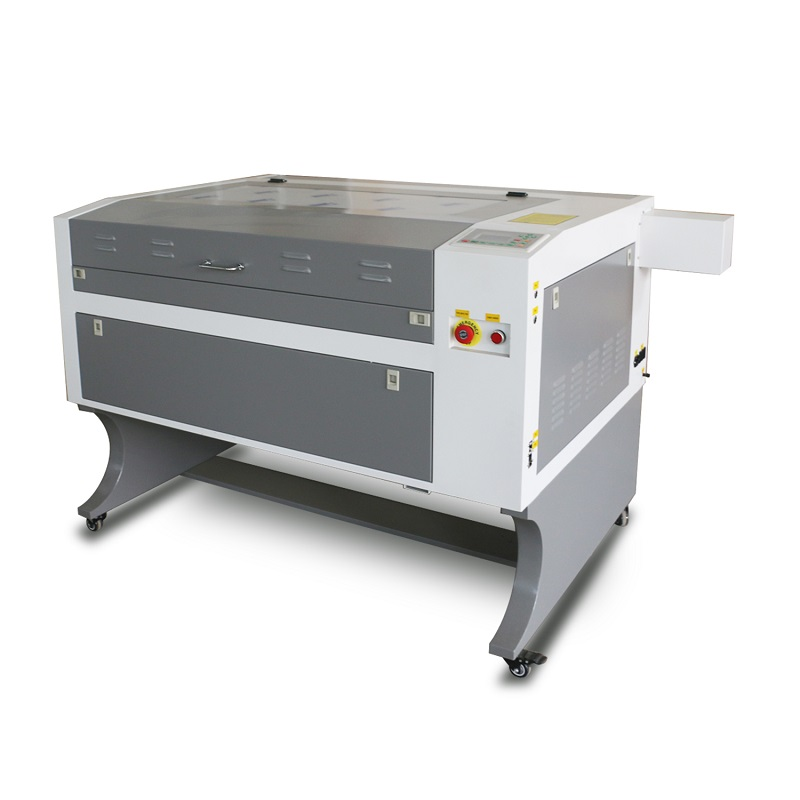

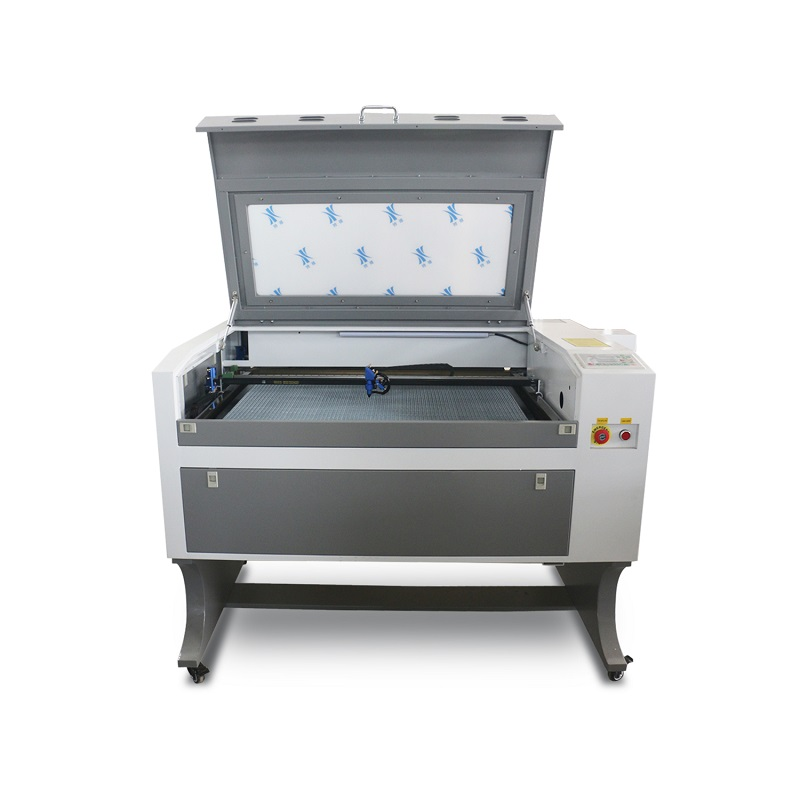

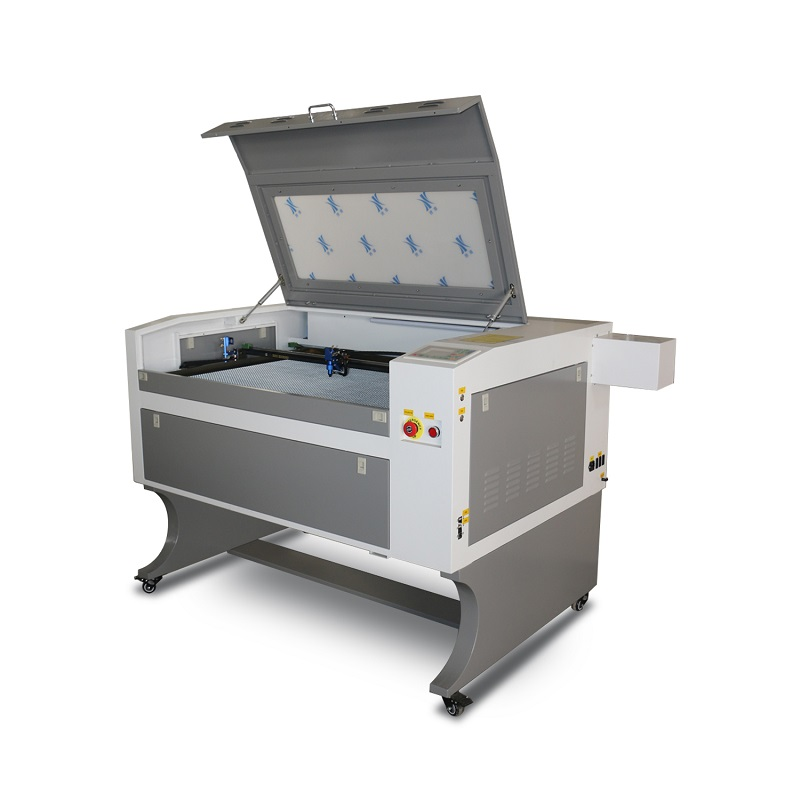

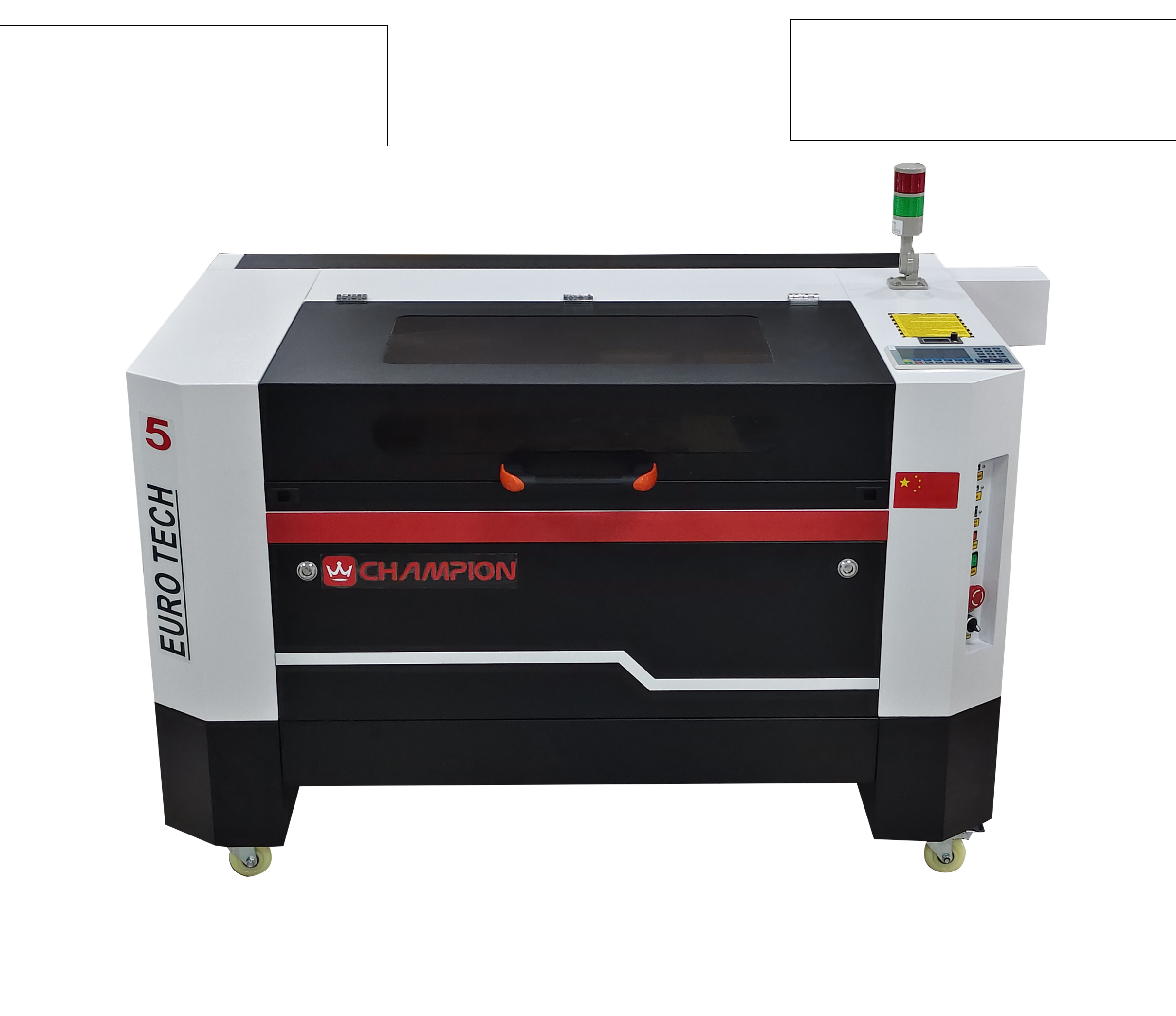

Laser Cutter /Engraver 6090

Laser Cutter /Engraver 600×900 mm AWM-2335

Features:

1. Lift platform, high speed and high accuracy

2. The best after–sale service

3. Easy to operate

LaserCutter Engraver600×900mmAWM-233

PRODUCT SPECIFICATION

MODEL
9060
Laser Power
100w
Machine size
1400*980*980mm
Package size
1570*1060*800mm
Working area
600*900mm
Engraving thickness
0-2mm(depend on material)
Cutting thickness
0-20mm(depend on material)
Engraving speed
1-600mm/s
Cutting speed
1-50mm/s
Laser type
Sealed CO2 laser tube
Cooling mode
Water cooling protection system
Water protection
Yes
Positioning way
Red light positioning
Locating precision
<=0.01mm
Power supply
AC220V 50hz
Packing
Plywood box
System environment
WindowsXP/win7/8/10
Compatible software
Corel laser, Lightburn

APPLICATION

Material
Engraving
Cutting
Acrylic
wood
bamboo
glass
X
leather
paper
rubber
textile
plastic
metal
X
X
stone
X
ceramic
X
