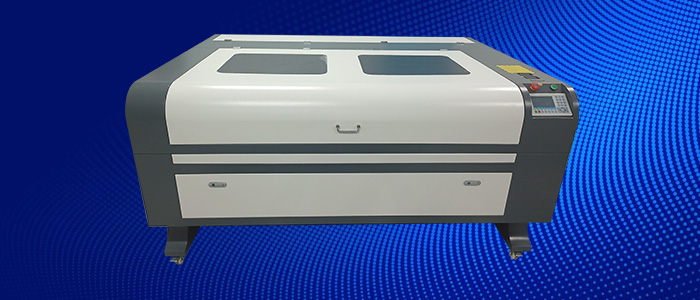

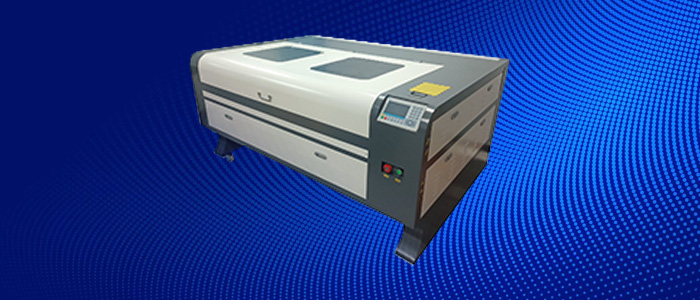

Laser Cutter / Engraver 1600×1000 mm
PRODUCT SPECIFICATION
MODEL
1610 Double Head
Laser tube
Sealed CO2 Glass Tube
Laser Power
150W + 150W
Cutting Speed
1-300mm/s
Engraving Speed
1-1000mm/s
Working Area
1600 x 1000 mm
Net Weight
650KG
Locating Precision
<= 0.09mm
Cooling Mode
Water Cooling Protection System
Water Protection
Yes
Motor
Hybrid Servo Motor
Power Voltage
AC110-220 +- 10%50-60Hz
Packing
Plywood Case
Controller
Ruida – C6445S
Software compatible
Rdwork
Water Chiller
CW5202
Positioning Way
Red Light Positioning
Linear Guide
X and 2 Y axis linear guide
Work platform
Honeycomb + Knife Bar
Lift Range
Electric Up and Down, 0-300mm
Positioning Way
Red Light Positioning
APPLICATION
Material
Engraving
Cutting
Acrylic
√
√
wood
√
√
bamboo
√
√
glass
√
X
leather
√
√
paper
√
√
rubber
√
√
textile
√
√
plastic
√
√
metal
X
X
stone
√
X
ceramic
√
X
