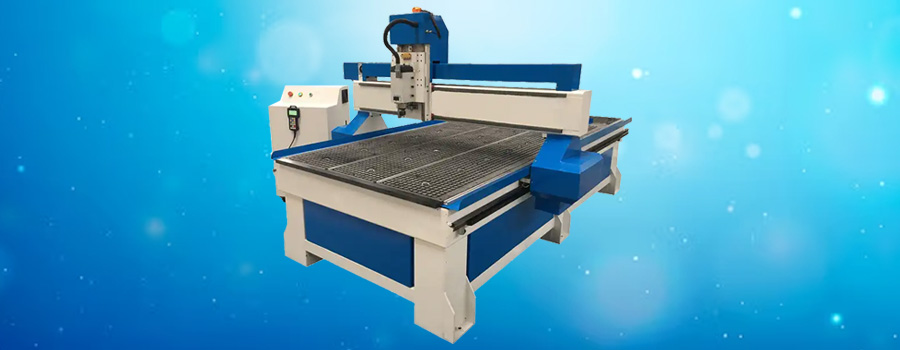

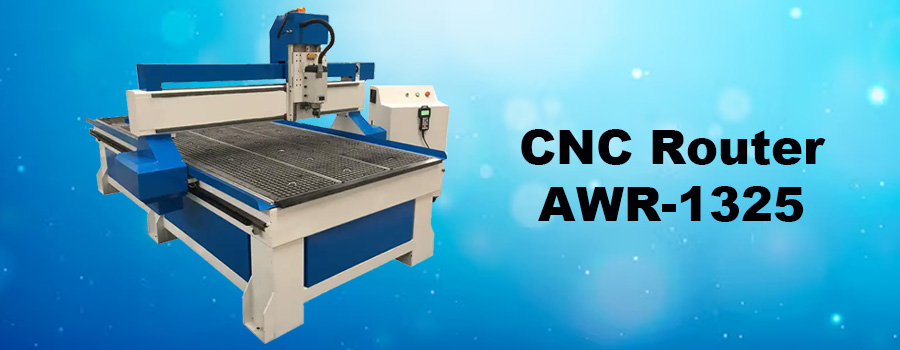

CNC Router AWR-1325 Single Spindle

MODEL

1325

X-Y Axis Working Area

1300mm x 2500mm

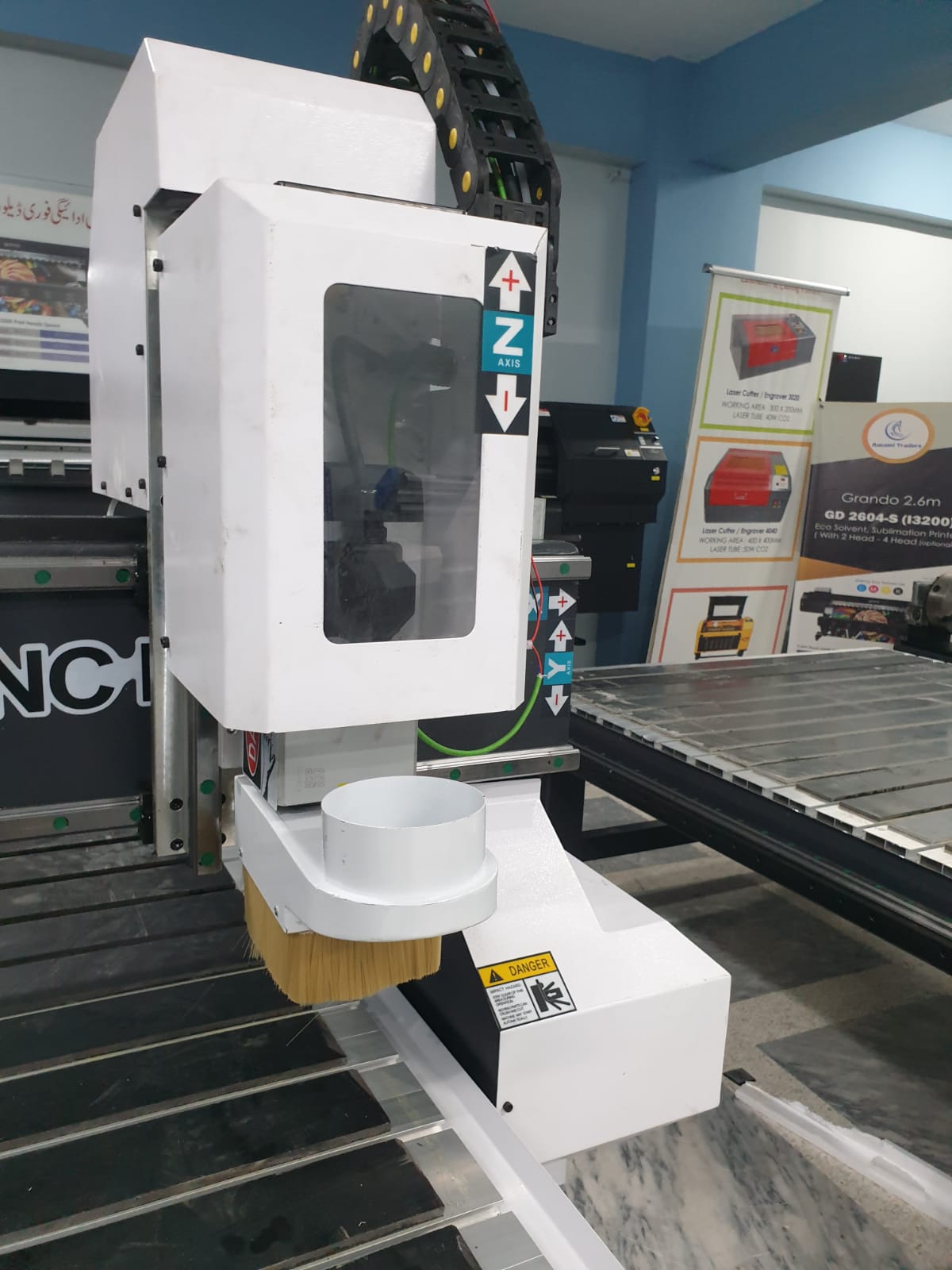

Spindle power

3.5kw Air cooling spindle

Spindle Speed

18000rpm/min

Table

T slot alumunum 1.2mm, covered hard pvc 8mm

Frame

Welding steel square tubes

Gantry

8mm thick bridge, cast steel support

Guide Rail

Square guide rail 25mm

Motor

Hybrid servo

Maximum speed

0 – 30,000mm / min

Maximum working speed

0 – 20,000mm / min

Working Voltage

220v 1 ph 50hz

Running Circumstance temperature

00 C – 450 C

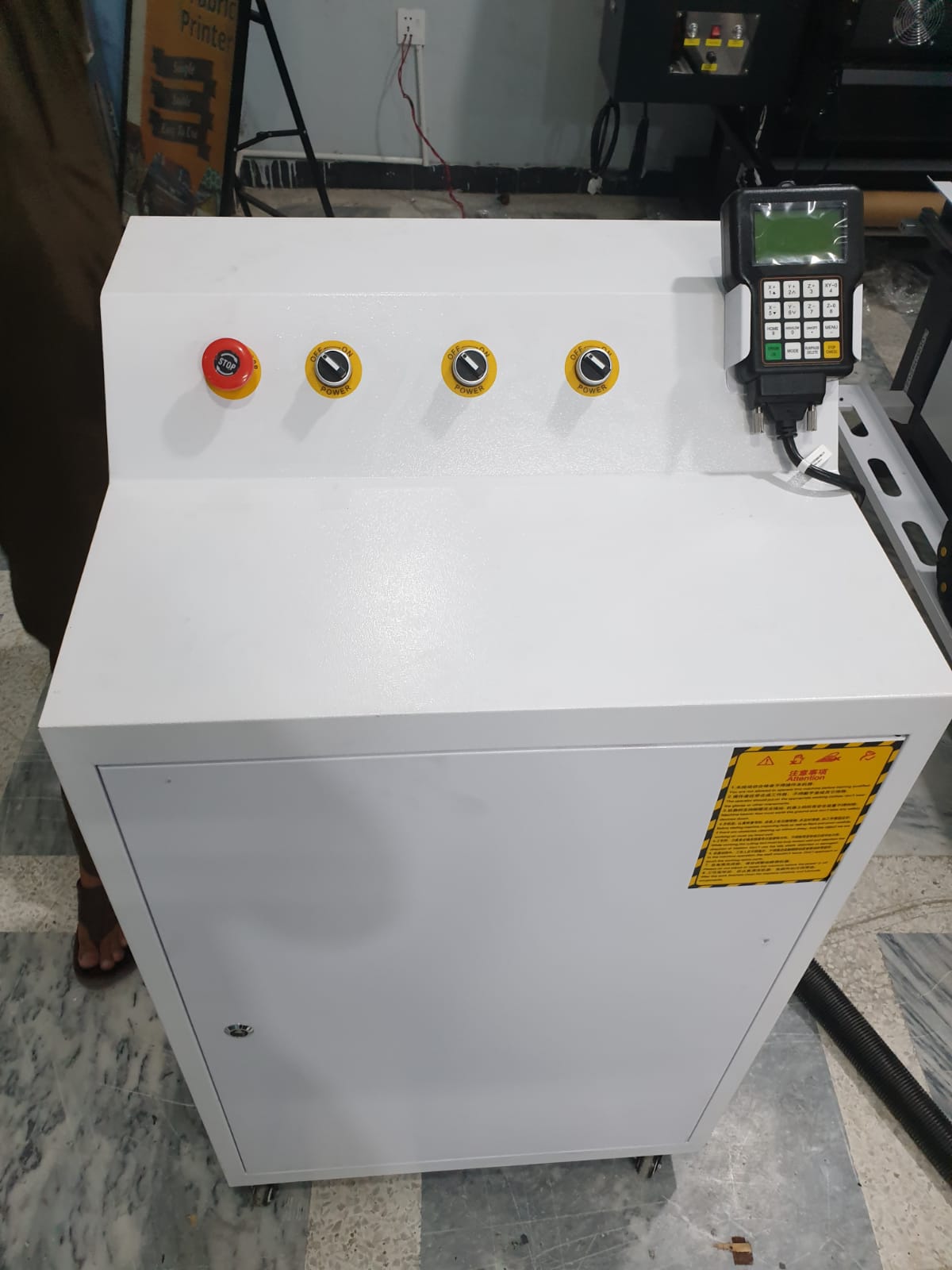

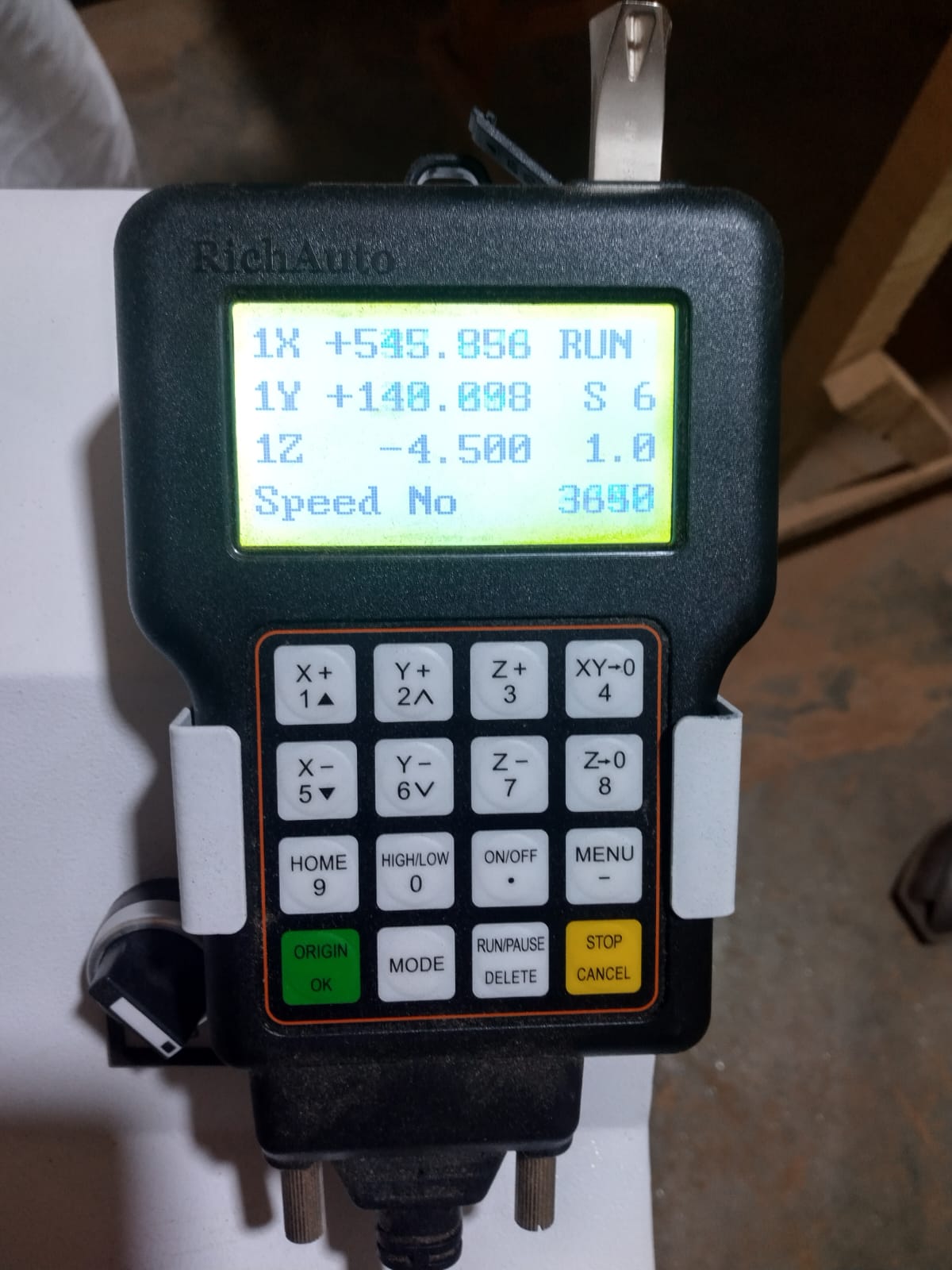

Controller

DSP Controller
